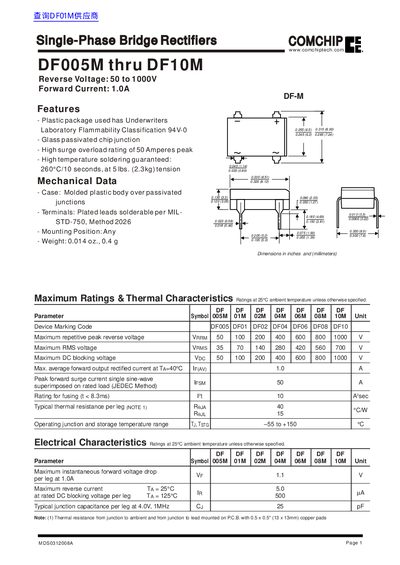

This document is the datasheet of COMCHIP DF005M~DF10M series single-phase bridge rectifiers.
The COMCHIP DF005M‑DF10M series are single‑phase bridge rectifiers offered in a molded plastic package. The devices feature a glass‑passivated chip junction, a high surge overload rating of 50 A peak, and a flammability classification of UL 94‑V‑0.
The datasheet provides maximum repetitive reverse voltage ratings from 50 V (DF005M) up to 1000 V (DF10M), a continuous forward current of 1.0 A, and typical electrical parameters such as forward voltage drop, junction capacitance, and thermal resistance. Mechanical data, derating curves, and typical characteristic graphs are also included.
| Typical junction capacitance per leg | 25 pF (4 V, 1 MHz) |
|---|---|
| Thermal resistance per leg | 40 °C/W |
| Package type | Molded plastic body over passivated junctions |
Typical junction capacitance is 25 pF at 4 V and 1 MHz.
