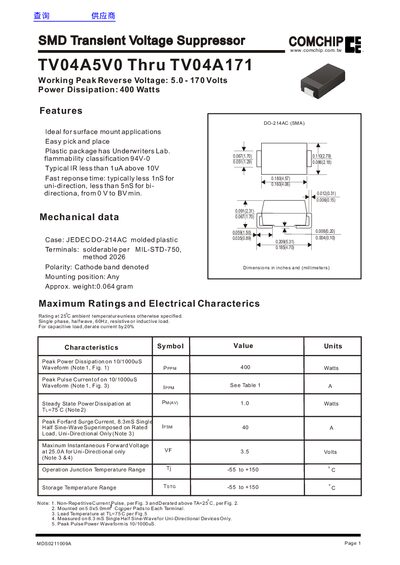

COMCHIP TV04A5V0–TV04A171 SMD Transient Voltage Suppressor Datasheet
This datasheet provides the electrical characteristics, maximum ratings, mechanical dimensions, and part‑number specifications for the COMCHIP TV04A series of surface‑mount transient voltage suppressors. The document includes typical reverse voltage ranges, power dissipation limits, and detailed tables for each model variant.
Key features include a DO‑214AC (SMA) plastic package, fast response times (≤1 ns uni‑directional), and low leakage current. The sheet also lists the weight, mounting options, and tolerance codes for both uni‑directional (K) and bi‑directional (B) devices.
COMCHIP TV04A5V0 Thru TV04A171 specifications
| Working Peak Reverse Voltage | 5.0 – 170 V |
|---|---|
| Power Dissipation | 400 W |
| Package Type | DO‑214AC (SMA) molded plastic |
| Approx. Weight | 0.064 g |
| Response Time (uni‑directional) | ≤1 ns |
| Response Time (bi‑directional) | ≤5 ns |
