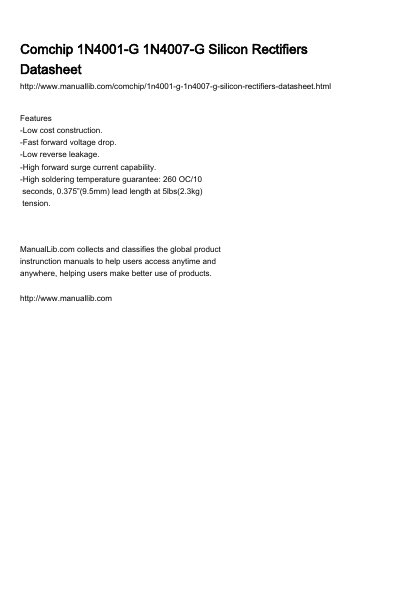

Features -Low cost construction. -Fast forward voltage drop. -Low reverse leakage. -High forward surge current capability. -High soldering temperature guarantee: 260 OC/10 seconds, 0.375
This datasheet covers the Comchip 1N4001-G through 1N4007-G series of general-purpose silicon rectifiers. Key features include low cost construction, fast forward voltage drop, low reverse leakage, and high forward surge current capability. The document specifies a high soldering temperature guarantee of 260°C for 10 seconds.
| Maximum Repetitive Peak Reverse Voltage | 50 to 1000 V |
|---|---|
| Maximum Average Forward Rectified Current | 1.0 A |
| Maximum Forward Surge Current | 30 A |
| Soldering Temperature Guarantee | 260 C/10 seconds |
| Package Type | DO-41 |
The rectifiers use a DO-41 package with transfer molded plastic.
The device guarantees a soldering temperature of 260 C for 10 seconds.
