This document describes the features and characteristics of PSMA8.5A to PSMA78A transient voltage suppressor diodes, including glass passivation, high maximum operating temperature, low leakage current, and excellent stability.

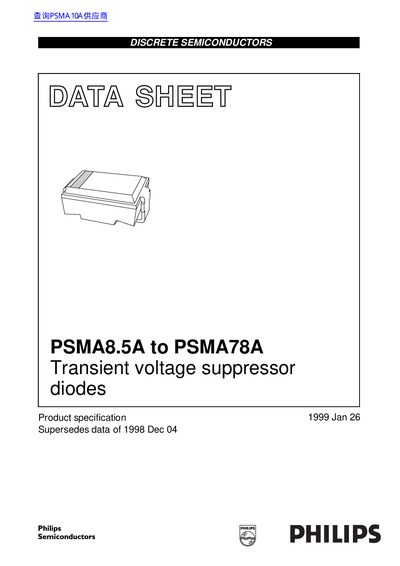

This document is a product specification datasheet for Philips Transient Voltage Suppressor (TVS) diodes, covering the model range from PSMA8.5A to PSMA78A. The devices are supplied in a glass passivated DO-214AC surface mountable package and feature a well-defined voltage-free case.
| Number of types | 26 types |
|---|---|
| Forward voltage (Ve) | 1.2 V max |
| Storage temperature (Tstg) | -65 to +175 °C |
| Junction temperature (Tj) | -65 to +175 °C |
There are 26 types of diodes covered in this specification.
The maximum forward voltage is 1.2 V.
