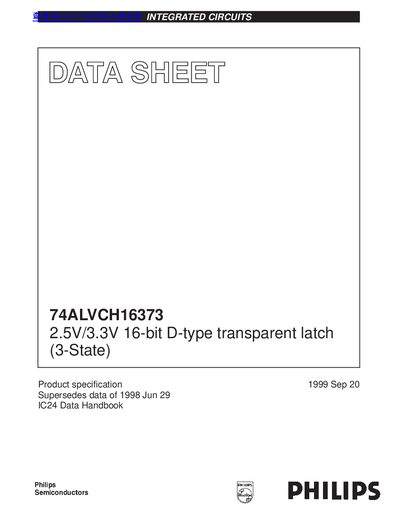

This document describes the features and characteristics of the 74ALVCH16373 2.5V/3.3V 16-bit D-type transparent latch (3-State), including wide supply voltage range, low power consumption, MULTIBYTE flow-through standard pin-out architecture, etc.
The Philips 74ALVCH16373 is a 16-bit D-type transparent latch featuring separate D-type inputs for each latch and 3-State outputs designed for bus-oriented applications. The device incorporates bus hold data inputs to eliminate the need for external pull-up or pull-down resistors, ensuring unused inputs are held stable.
| Supply Voltage Range | 1.2V to 3.6V |
|---|---|
| Number of Latches | 16-bit |
| Operating Temperature | -40°C to +85°C |
| Output Drive Capability | +24 mA at 3.0 V |
| Input Capacitance | 5.0 pF |
The output drive capability is +24 mA at 3.0 V.
The operating free-air temperature range is -40°C to +85°C.
