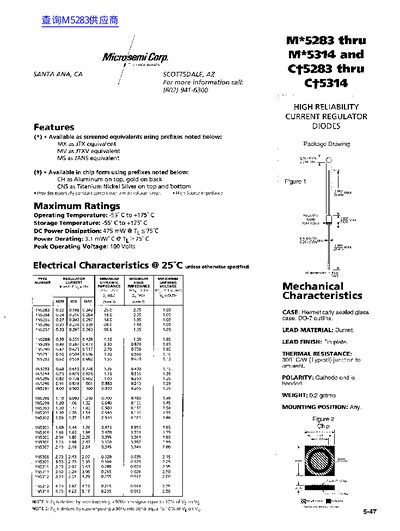

This document provides technical data for the Microsemi M*5283 through M*5314 series of High Reliability Current Regulator Diodes. It details available screened equivalents using specific prefixes such as MX for JTX and MS for JANS.
The datasheet lists maximum ratings including an operating temperature range of -55°C to +175°C and a peak operating voltage of 100 Volts. Electrical characteristics are provided for various types, specifying parameters like minimum current, dynamic knee impedance, and limiting voltage at 25°C.
| Storage Temperature Range | -55° C to +175" C |
|---|---|
| DC Power Dissipation | 475 mW @ T, < 75°C |
| Peak Operating Voltage | 100 Volts |
| Thermal Resistance (Typical) | 300° CAW junction to ambient |
| Weight | 0.2 grams |
The maximum DC power dissipation is 475 mW at temperatures under 75°C.
The typical thermal resistance is 300° C/W.
