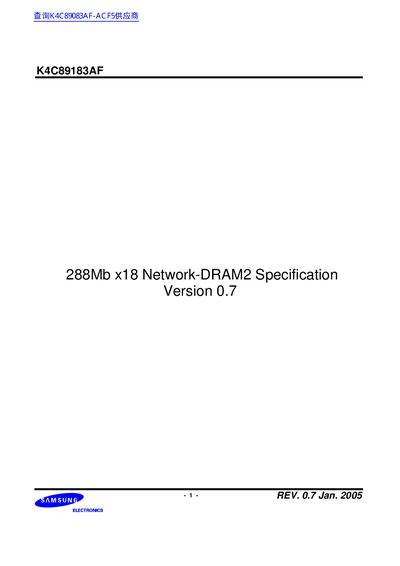

This document is about K4C89183AF-ACF5 specification, introduces the product features and characteristics, including product technical parameters, performance indicators and so on.
The K4C89183AF is a CMOS Double Data Rate (DDR) Network-DRAM containing 301,989,888 memory cells. It is organized as 4,194,304 words x 4 banks x 18 bits and features fully synchronous operation referenced to the clock edge.
| Organization | 4,194,304 words x 4 banks x 18 bits |
|---|---|
| Memory Density | 288Mb |
| Power Supply Voltage (VDD) | 2.375V to 2.625V |
| I/O Buffer Voltage (VDDQ) | 1.7V to 1.9V |
| Package Type | 60 Ball FBGA |
The device is organized as four independent banks for data access.
The VDD core requires 2.5V while the VDDQ buffer operates between 1.7V and 1.9V.
