The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients

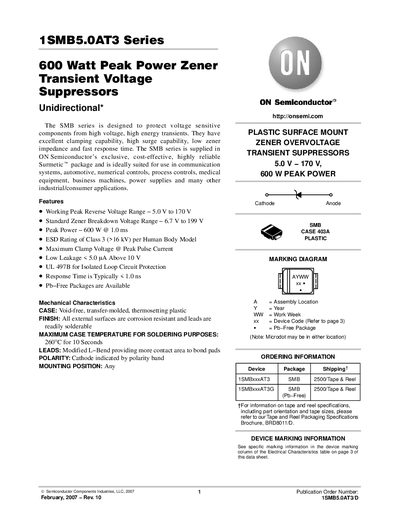

The document describes the 1SMB5.0AT3 Series, which are 600 Watt Peak Power Zener Transient Voltage Suppressors designed to protect voltage-sensitive components from high voltage transients. These devices feature excellent clamping capability, high surge capability, and a response time typically less than 1.0 ns. They are supplied in ON Semiconductor's Surmetic package and are suitable for communication systems, automotive, and industrial applications.
The datasheet provides comprehensive technical data including maximum ratings, electrical characteristics for various breakdown voltages ranging from 5.0V to 170V, and pulse rating curves. It also includes application notes on response time, duty cycle derating, and UL recognition for isolated loop circuit protection.
| Peak Power | 600 W @ 1.0 ms |
|---|---|
| Working Peak Reverse Voltage Range | 5.0 V to 170 V |
| Standard Zener Breakdown Voltage Range | 6.7 V to 199 V |
| ESD Rating | Class 3 (>16 kV) |
| Response Time | < 1.0 ns |
| Forward Surge Current | 100 A |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Maximum Case Temperature for Soldering | 260°C for 10 Seconds |
The peak power is 600 W at a pulse width of 1.0 ms.
The response time is typically less than 1.0 ns.
