This is an introduction to HYM724000/10GS-50/-60 4M x 72 ECC-Module

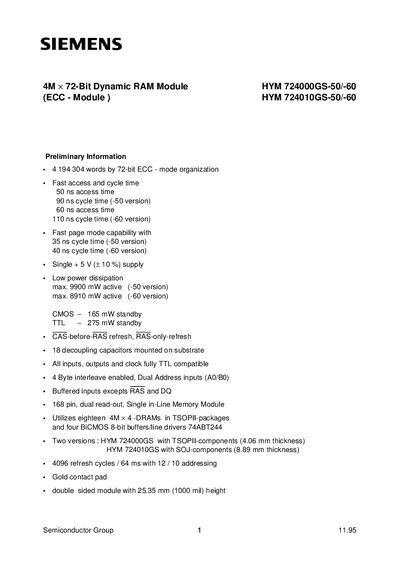

This document describes the Siemens HYM 724000GS-50/-60 and HYM 724010GS-50/-60, which are 32 MByte (4M x 72-bit) ECC DRAM modules. The modules utilize eighteen 4M x 4 DRAMs in TSOPII or SOJ packages mounted on a PC board with buffered inputs and outputs.
The datasheet provides detailed electrical specifications including absolute maximum ratings, DC characteristics for supply currents, capacitance values, and AC timing parameters for random read/write cycles, refresh modes, and fast page mode operations.
| Organization | 4 194 304 words by 72-bit ECC - mode |
|---|---|
| Access Time (-50 version) | 50 ns |
| Cycle Time (-60 version) | 110 ns |
| Supply Voltage | + 5 V (+ 10 %) |
| Max Active Power (-50 version) | 9900 mW |
| Package Type | 168 pin, dual read-out, Single in-Line Memory Module |
| Refresh Period | 64 ms |
The two versions are HYM 724000GS with TSOPII-components (4.06 mm thickness) and HYM 724010GS with SOJ-components (8.89 mm thickness).
The maximum active power dissipation for the -50 version is 9900 mW.
Each module utilizes eighteen 4M x 4-DRAMs.
