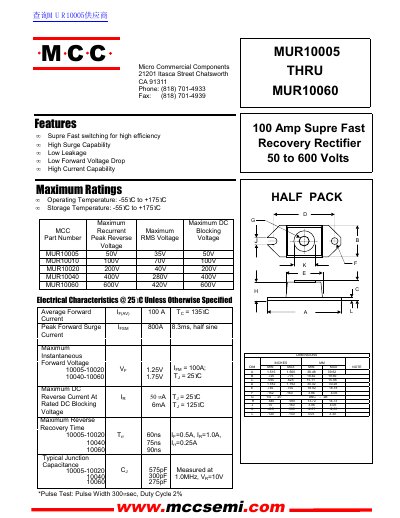

Micro Commercial Components MUR10005 thru MUR10060 Datasheet

MUR10005 THRU MUR10060 100 Amp Supre Fast Recovery Rectifier 50 to 600 Volts is a semiconductor device produced by MCC company, which has the characteristics of high surge capability, low leakage, low voltage drop, high current capability and high efficiency

Brand: MCC
Category: RECTIFIER
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 118 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 23B8328E39788A452D831707794E1399
PDF: Micro Commercial Components MUR10005 thru MUR10060 Datasheet PDF

About this manual

This document is a technical datasheet for the Micro Commercial Components (MCC) Supre Fast recovery rectifier series. It covers part numbers ranging from MUR10005 to MUR10060, designed for high efficiency with low leakage and low forward voltage drop.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Typical Forward Characteristics
Forward Derating Curve
Junction Capacitance
Typical Reverse Characteristics
Peak Forward Surge Current

Specifications

Maximum Operating Temperature	-55°C to +175°C
Maximum Reverse Recovery Time (MUR10060)	90ns

Frequently asked questions

What is the maximum operating temperature for these rectifiers?

The maximum operating temperature is +175°C.

What is the maximum reverse recovery time for the MUR10060 model?

The maximum reverse recovery time is 90ns.

Download PDF (118 KB)
