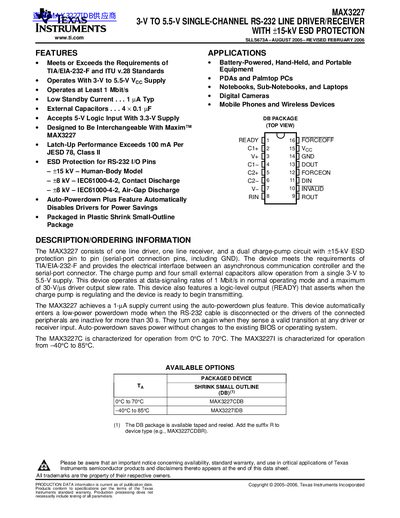

MAX3227 is a single-channel RS-232 line driver/receiver from TI with ±15-kV ESD protection, meeting or exceeding the requirements of equipment TIA/EIA-232-F and ITU v.28 standards.
The MAX3227 is a single-supply RS-232 transceiver designed for battery-powered and portable equipment such as PDAs, laptops, and mobile phones. It meets TIA/EIA-232-F and ITU v.28 standards and operates at data rates of up to 1 Mbit/s using only four small external capacitors.
The device features a unique Auto-Powerdown Plus capability that automatically disables drivers to save power when the RS-232 cable is disconnected or peripheral drivers are inactive for over 30 seconds. It includes +15-kV Human-Body Model ESD protection and is packaged in a plastic shrink small-outline package.
| Supply Voltage Range | 3 V to 5.5 V |
|---|---|
| Maximum Data Rate | 1 Mbit/s |
| ESD Protection (Human-Body Model) | +15 kV |
| External Capacitor Count | 4 capacitors |
The device operates with a single-supply voltage ranging from 3 V to 5.5 V.
The device operates at least 1 Mbit/s in normal operating mode.
