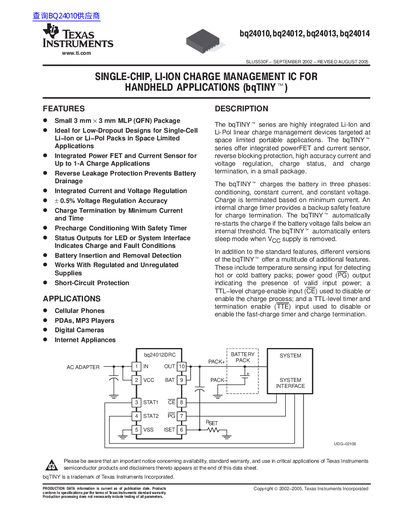

The bqTINY series are highly integrated Li-Ion and Li-Pol linear charge management devices targeted at space limited portable applications.
The bqTINY series are highly integrated Li-Ion and Li-Pol linear charge management devices targeted at space-limited portable applications. These devices offer integrated power FETs and current sensors, reverse blocking protection, high accuracy current and voltage regulation, charge status indicators, and charge termination in a small 3 mm x 3 mm MLP (QFN) package. They are ideal for low-dropout designs for single-cell Li-Ion or Li-Pol packs.
| Package | 3 mm x 3 mm MLP (QFN) |
|---|---|
| Operating Temperature Range | -40°C to 125°C |
| Supply Voltage Range | 3.0 V to 16.5 V |
| Output Voltage | 4.20 V |
| Output Current Range | 100 mA to 1000 mA |
| Voltage Regulation Accuracy | +0.5% / -1% |
| Dropout Voltage | 650 mV to 790 mV |
They are targeted for cellular phones, PDAs, MP3 players, digital cameras, and internet appliances.
Charge is terminated based on minimum current and time, with an internal charge timer providing a backup safety feature.
Yes, it includes reverse leakage protection to prevent battery drainage.
