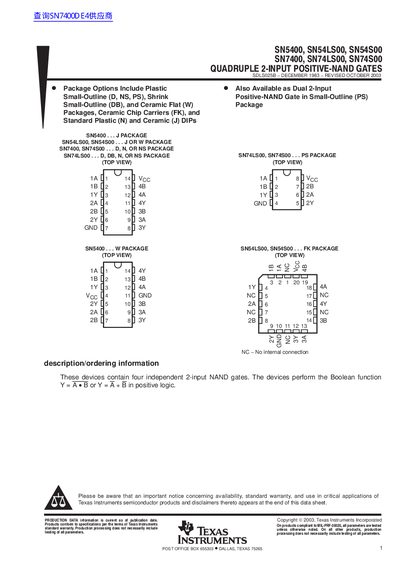

This datasheet provides the pin definition, package types, power supply, and operating temperature range of SN5400, SN7400, SN54LS00, SN74LS00, SN54S00, and SN74S00.
This document is a technical datasheet for the SN5400, SN54LS00, SN54S00, SN7400, SN74LS00, and SN74S00 series of integrated circuits. These devices contain four independent 2-input positive-NAND gates that perform the Boolean function Y = A·B or Y = A + B in positive logic.
The datasheet provides comprehensive technical data including absolute maximum ratings, recommended operating conditions, electrical characteristics over temperature, and switching characteristics for various supply voltages. It also details available package options such as DIP, SOIC, SOP, SSOP, and ceramic carriers.
| Number of Gates | Four independent 2-input NAND gates |
|---|---|
| Boolean Function | Y = A·B or Y = A + B |
| High-Level Input Voltage (VIH) | 2 V |
| Low-Level Output Current (IOL) | 16 mA |
The devices perform the Boolean function Y = A·B or Y = A + B in positive logic.
Available packages include Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), Ceramic Flat (W), Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs.
