This document describes the features and characteristics of the Harris Semiconductor SCHS205I, including propagation delay, voltage level conversion, operating temperature range, balanced propagation delay, and transition times.

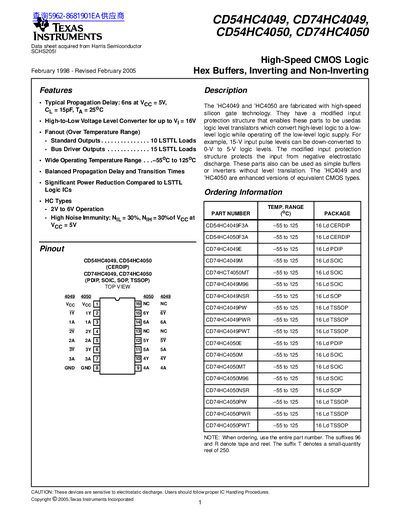

This document is a datasheet for the CD54HC4049, CD74HC4049, CD54HC4050, and CD74HC4050 high-speed CMOS logic devices. These parts are fabricated with silicon gate technology and function as hex buffers or inverters.
| Typical Propagation Delay (CL=15pF) | 6ns at Vcc = 5V, Ta = 25°C |
|---|---|
| High-to-Low Voltage Level Converter Limit | up to V| = 16V |
Yes, they can convert high-level logic to low-level logic while operating off the low-level logic supply.
Yes, users should follow proper IC Handling Procedures because the devices are sensitive to electrostatic discharge.
