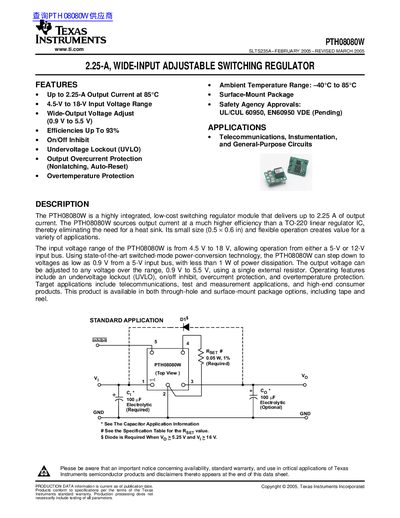

The PTH08080W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08080W sources output current at a much higher efficiency than a TO-220 linear regulator IC, thereby eliminating the need for a heat sink. Its small size (0.5 × 0.6 in) and flexible operation creates value for a variety of applications.
The PTH08080W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. It operates with an input voltage range of 4.5 V to 18 V and can step down to output voltages as low as 0.9 V. The device features undervoltage lockout, on/off inhibit, output overcurrent protection, and overtemperature protection.
| Output Current | 2.25 A |
|---|---|
| Input Voltage Range | 4.5 V to 18 V |
| Output Voltage Adjust Range | 0.9 V to 5.5 V |
| Efficiency | Up to 93% |
| Operating Temperature Range | -40°C to 85°C |
| Output Overcurrent Protection | 3.5 A |
The maximum output current is 2.25 A at 85°C.
The input voltage range is from 4.5 V to 18 V.
The output voltage can be adjusted from 0.9 V to 5.5 V.
