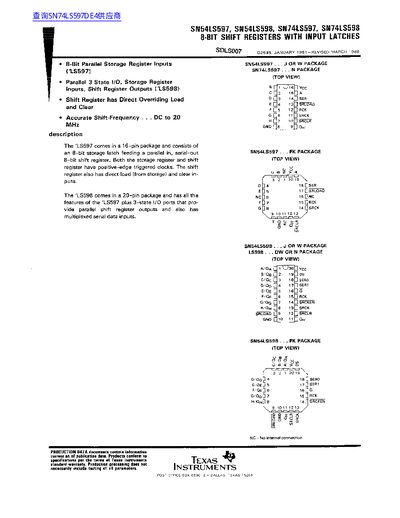

The document describes four models of 8-bit parallel storage registers with input latches. The SN54LS597 consists of an 8-bit storage latch feeding a parallel-in, serial-out 8-bit shift register in a 16-pin package. The SN54LS598 includes all features of the LS597 plus 3-state I/O ports that provide parallel shift register outputs and multiplexed serial data inputs in a 20-pin package.
| Shift clock frequency | DC to 20 MHz |
|---|
The shift register supports a shift clock frequency up to 20 MHz.
Military parts operate from -55°C to 125°C, while commercial parts operate from 0°C to 70°C.
The absolute maximum rating for the supply voltage is 7V.
