The CD4086B is a 14-lead bipolar CMOS integrated circuit produced by Texas Instruments. It has four 2-input non-gate circuits that can be used for logic operations such as AND, OR, and NOT.

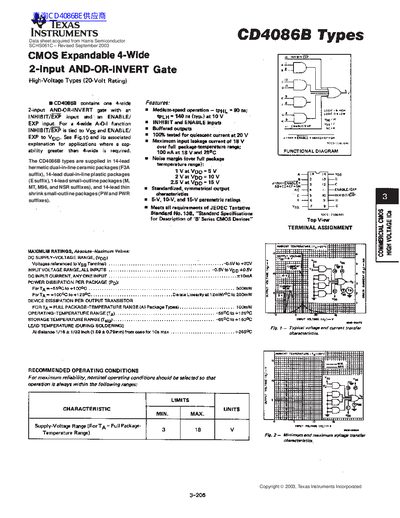

The document describes the CD4086B Types, which are CMOS Expandable 4-Wide 2-Input AND-OR-INVERT Gates with a high voltage rating of 20V. These devices feature medium-speed operation, buffered outputs, and include INHIBIT/EXP and ENABLE/EXP inputs to allow for expandable logic functions beyond the standard four-wide configuration.
| Propagation Delay Time (typ) | 90 ns at 10 V |
|---|
The device has a high-voltage rating of 20 volts.
