The SN75LVDS88B is a TFT LCD panel timing controller with an LVDS interface, suitable for notebook applications, supports XGA resolution, and supports mainstream data and gate drivers.

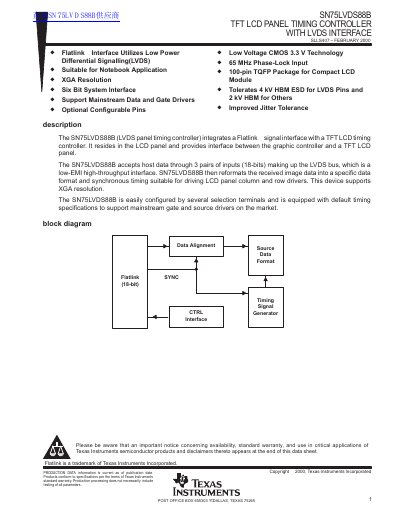

The SN75LVDS88B is an integrated TFT LCD panel timing controller that utilizes Texas Instruments' Flatlink signal interface. It resides within the LCD panel to provide the interface between the graphic controller and the TFT LCD panel, accepting host data through a low-EMI high-throughput LVDS bus.
| Supply Voltage (VCC) | 3.0 V to 3.6 V |
|---|---|
| Package Type | 100-pin TQFP |
| Resolution Support | XGA |
| ESD Tolerance (LVDS Pins) | 4 kV HBM |
| Operating Temperature Range | -65 °C to 150°C (Storage) |
It is suitable for notebook applications.
Yes, it supports XGA resolution.
The recommended operating supply voltage range is 3.0 V to 3.6 V.
