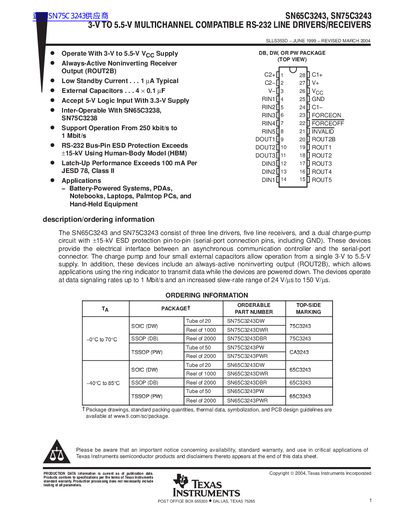

The SN65C3243 and SN75C3243 consist of three line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin-to-pin (serial-port connection pins, including GND). These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. In addition, these devices include an always-active noninverting output (ROUT2B), which allows applications using the ring indicator to transmit data while the devices are powered down. The devices operate at data signaling rates up to 1 Mbit/s and an increased slew-rate range of 24 V/µs to 150 V/µs.
The SN65C3243 and SN75C3243 consist of three line drivers, five line receivers, and a dual charge-pump circuit with +15-kV ESD protection. These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply.
| Supply Voltage Range | 3 V to 5.5 V |
|---|---|
| ESD Protection | +15-kV |
| Operating Temperature (SN65C3243) | -40°C to 85°C |
| Number of Drivers | Three |
| Number of Receivers | Five |
The devices operate with a single supply voltage ranging from 3 V to 5.5 V.
The devices operate at data signaling rates up to 1 Mbit/s.
The devices provide +15-kV ESD protection using the Human-Body Model (HBM).
Available packages include SOIC (DW), SSOP (DB), and TSSOP (PW).
