CNC1H001 Optoisolator is a double molded package optocoupler with 1.27mm pitch surface mount package. It features 2.5kV isolation voltage and UL approval (File No. E79920). It is suited for interface circuits requiring high density mounting of parts, especially hybrid ICs and programmable controllers, and signal transfer between circuits with different potentials and with impedances.

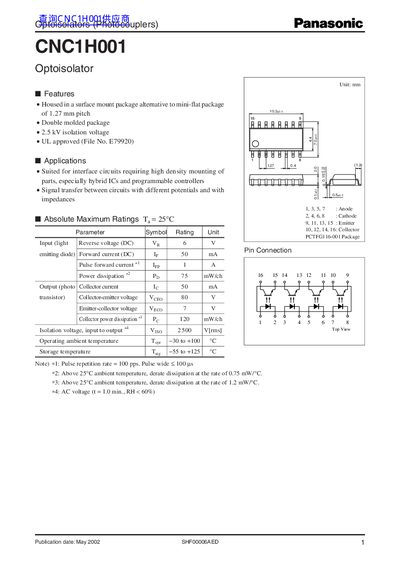

This document is a datasheet for the Panasonic CNC1H001, a surface mount optoisolator housed in a double molded package with a 1.27 mm pitch. It is designed for interface circuits requiring high density mounting, particularly for hybrid ICs and programmable controllers, facilitating signal transfer between circuits with different potentials.
| Pitch | 1.27 mm |
|---|---|
| Isolation Voltage | 2.5 kV |
| Operating Ambient Temperature | -30 to +100 °C |
| Storage Temperature | -55 to +125 °C |
| Forward Voltage (Typical) | 1.5 V |
| Collector-Emitter Voltage (Max) | 80 V |
| Current Transfer Ratio (Typical) | 600 |
The device is housed in a surface mount package with a 1.27 mm pitch.
It is suited for interface circuits requiring high density mounting, especially for hybrid ICs and programmable controllers.
Yes, it is UL approved with File No. E79920.
