2SB970 is a silicon PNP epitaxial planer type transistor for low-voltage output amplification

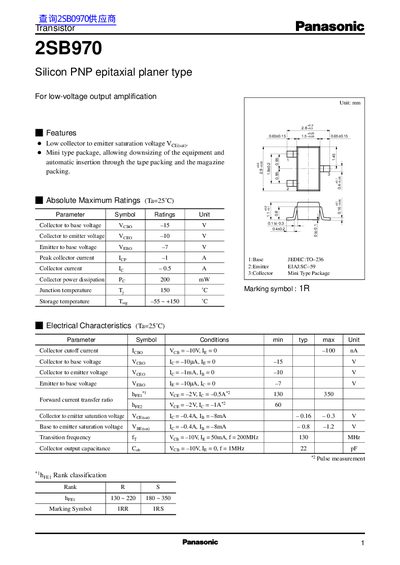

This document is a datasheet for the Panasonic 2SB970, a Silicon PNP epitaxial planar type transistor. It is designed for low-voltage output amplification and features a mini type package that allows for equipment downsizing and automatic insertion via tape packing or magazine packing.
The datasheet provides absolute maximum ratings, electrical characteristics, and performance graphs. Key specifications include a collector to emitter voltage of -10V, a peak collector current of -1A, and a transition frequency (fT) of 200MHz. It also details thermal characteristics and rank classifications based on collector output capacitance.
| Transistor Type | Silicon PNP epitaxial planar type |
|---|---|
| Application | Low-voltage output amplification |
| Package Type | Mini type package |
The absolute maximum rating for collector power dissipation is 200 mW.
