V23818-K15-Lxx is a small form factor transceiver that complies with Fibre Channel and Gigabit Ethernet standards. It features an RJ-45 style LC™ connector system, single 3.3 V power supply, low power consumption of 650 mW typical, loss of optical signal indicator, laser disable input, LVPECL differential inputs and outputs, AC/AC coupling in accordance to SFF MSA or optional DC/DC coupling version, FDA and IEC laser safety compliance, multisource 2x5/2x10 footprint, small size, UL 94 V-0 certification, compliance with FCC (Class B) and EN 55022, and Tx and Rx power monitor on 2x10 pinning version.

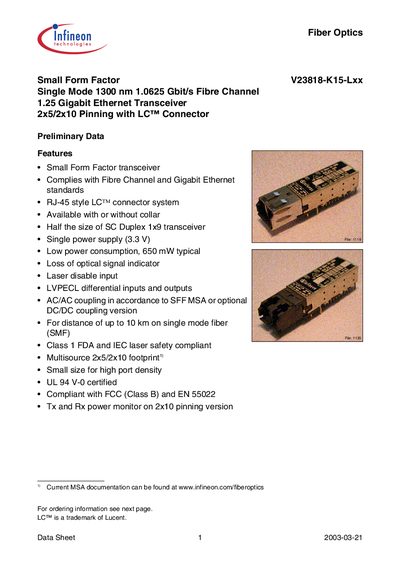

The document details the specifications for the Infineon V23818-K15-Lxx, a single mode 1300 nm transceiver operating at 1.0625 Gbit/s. It supports both Fibre Channel and Gigabit Ethernet standards and features an RJ-45 style LC connector system available with or without a collar.
The datasheet provides comprehensive information on ordering options, pin configurations for 2x5 and 2x10 pinning versions, electrical characteristics, and mechanical package outlines. It includes details on power supply requirements (3.3 V), laser safety compliance, and monitoring functions such as optical signal detection and bias current monitoring.
The transceiver supports a distance of up to 10 km on single mode fiber.
A single power supply of 3.3 V is required.
The typical power consumption is 650 mW.
