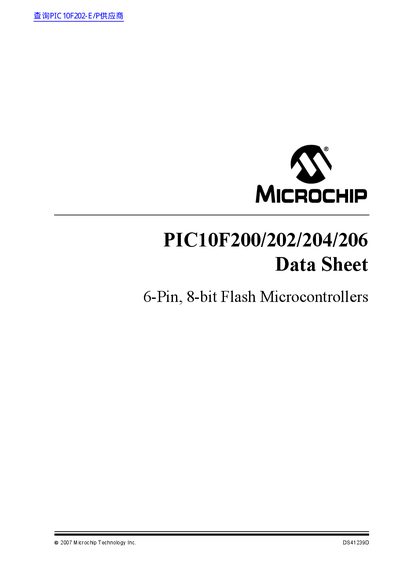

Microchip PIC10F200/202/204/206 8-bit Flash Microcontrollers Data Sheet

This datasheet introduces the Microchip Technology Inc. PIC10F200/202/204/206 6-pin 8-bit Flash Microcontrollers.

Brand: MICROCHIP
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 96
File format: PDF
File size: 959 KB
Published: 11 June, 2012
Updated: 30 September, 2023
Models: PIC10F200, PIC202, PIC204, PIC206
MD5 checksum: 9F75CC6FFFF4F5C643455732F841A1F8
PDF: Microchip PIC10F200/202/204/206 8-bit Flash Microcontrollers Data Sheet PDF

About this manual

This document provides technical specifications and architectural details for the Microchip PIC10F200/202/204/206 family of 6-pin and 8-pin, 8-bit Flash microcontrollers. The devices feature a High-Performance RISC CPU with only 33 single-word instructions to learn, operating at speeds up to 4 MHz.

What's inside

General Description
Device Varieties
Architectural Overview
Memory Organization
Timer0 Module
Comparator Module
Special Features of the CPU
Instruction Set Summary
Development Support
Electrical Characteristics

Specifications

Operating Voltage Range	2.0V to 5.5V
Maximum Operating Speed	4 MHz
Instruction Cycle Time	1 µs
Flash Endurance	100,000 cycles

Frequently asked questions

What is the operating temperature range for industrial applications?

The industrial temperature range is -40°C to +85°C.

How many single-word instructions does the CPU have?

The High-Performance RISC CPU has only 33 single-word instructions to learn.
