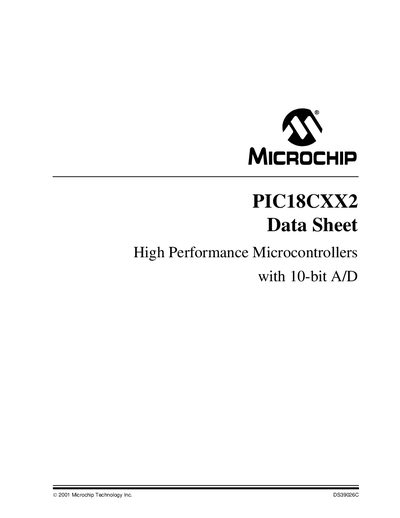

Microchip PIC18CXX2 High Performance Microcontrollers Data Sheet

Brand: MICROCHIP
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 305
File format: PDF
File size: 5.1 MB
Published: 11 June, 2012
Updated: 29 September, 2023
Model: PIC18CXX2
MD5 checksum: DCA78C477B51858F939D47404A91C3BE
PDF: Microchip PIC18CXX2 High Performance Microcontrollers Data Sheet PDF

About this manual

This document is a technical datasheet for the PIC18CXX2 family of high-performance microcontrollers. The devices feature a high-performance RISC CPU optimized for C compilers, with source code compatibility with the PIC16CXX instruction set. Key architectural features include linear program memory addressing up to 2 Mbytes and linear data memory addressing up to 4 Kbytes.

What's inside

Device Overview
Oscillator Configurations
Reset
Memory Organization
Interrupts
Timer Modules
Capture/Compare/PWM Modules
Master Synchronous Serial Port
Analog-to-Digital Converter
Electrical Characteristics

Specifications

Program Memory	16K or 32K bytes
Data Memory	512 or 1536 bytes
Operating Speed	Up to 10 MIPS
Clock Input	DC - 40 MHz
A/D Converter Resolution	10-bit
Operating Voltage	2.5V to 5.5V

Frequently asked questions

What is the maximum operating frequency for the PIC18CXX2 microcontrollers?

The device supports operation up to 10 MIPS with a DC to 40 MHz oscillator or clock input.

What is the operating voltage range for the PIC18CXX2 microcontrollers?

The microcontrollers operate within a wide voltage range of 2.5V to 5.5V.

What is the maximum PWM frequency achievable with 8-bit resolution?

The maximum PWM frequency at 8-bit resolution is 156 kHz.
