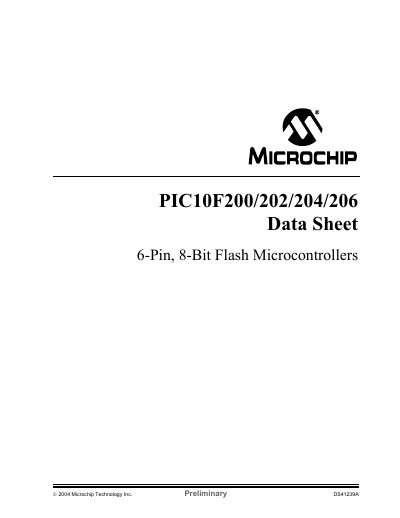

Microchip PIC10F200/202/204/206 6-Pin Flash Microcontrollers Data Sheet

DS41239A PIC10F200/202/204/206 Data Sheet 6-Pin, 8-Bit Flash Microcontrollers.

Brand: MICROCHIP
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 96
File format: PDF
File size: 931 KB
Published: 11 June, 2012
Updated: 30 September, 2023
Models: PIC10F200, PIC202, PIC204, PIC206
MD5 checksum: 8ADD21550E68A7C5D56AFBC0448EBEDF
PDF: Microchip PIC10F200/202/204/206 6-Pin Flash Microcontrollers Data Sheet PDF

About this manual

This document provides comprehensive technical specifications and architectural details for the PIC10F200/202/204/206 series of 6-pin, 8-bit Flash Microcontrollers. The devices feature a High-Performance RISC CPU with only 33 single-word instructions to learn, operating at speeds up to 4 MHz.

What's inside

General Description
Device Varieties
Architectural Overview
Memory Organization
I/O Port
Timer0 Module
Comparator Module
Instruction Set Summary
Development Support
Electrical Characteristics

Specifications

Operating Voltage Range	2.0V to 5.5V
Operating Temperature (Industrial)	-40°C to +85°C
Operating Current	<175 pA @ 2V, 4 MHz
Flash Endurance	100,000 cycles
Data Retention	> 40 years

Frequently asked questions

What is the operating voltage range for these microcontrollers?

The devices operate with a wide voltage range from 2.0V to 5.5V.

What is the maximum operating speed of the internal clock?

The internal clock operates at a maximum speed of 4 MHz.

What is the typical operating current at 2V and 4 MHz?

The typical operating current is less than 175 pA at 2V and 4 MHz.
