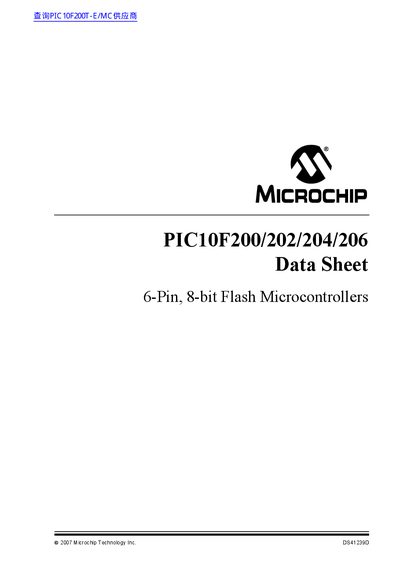

Microchip PIC10F200/202/204/206 8-bit Flash Microcontrollers Data Sheet

6-pin, 8-bit Flash Microcontrollers

Brand: MICROCHIP
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 96
File format: PDF
File size: 959 KB
Published: 11 June, 2012
Updated: 30 September, 2023
Models: PIC10F200, PIC202, PIC204, PIC206
MD5 checksum: 277D7B47D07538CF56D7E30C963D3D77
PDF: Microchip PIC10F200/202/204/206 8-bit Flash Microcontrollers Data Sheet PDF

About this manual

This document provides technical specifications and architectural details for the Microchip PIC10F200/202/204/206 family of 6-pin and 8-pin, 8-bit Flash microcontrollers. The devices feature a High-Performance RISC CPU with only 33 single-word instructions to learn.

What's inside

General Description
Device Varieties
Architectural Overview
Memory Organization
Timer0 Module
Comparator Module
Special Features of the CPU
Instruction Set Summary
Development Support
Electrical Characteristics

Specifications

Operating Voltage Range	2.0V to 5.5V
Operating Temperature (Industrial)	-40°C to +85°C
Internal Oscillator Precision	+1%
Flash Endurance	100,000
Program Memory (PIC10F200)	256 words

Frequently asked questions

What is the operating speed of the PIC10F20X microcontrollers?

The devices operate at a maximum speed of 4 MHz with a 1 µs instruction cycle.

Does the PIC10F206 include a comparator?

Yes, the PIC10F204 and PIC10F206 models include one comparator with an internal absolute voltage reference.

Download PDF (959 KB)
