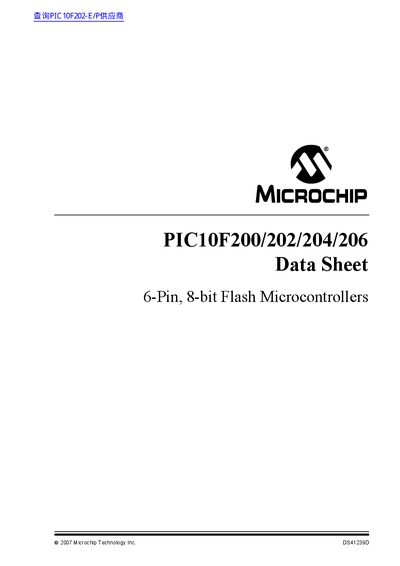

Microchip PIC10F200/202/204/206 6-Pin 8-Bit Flash Microcontrollers Data Sheet

About this manual

This document provides a comprehensive technical overview of the PIC10F200/202/204/206 family of 6-pin, 8-bit flash microcontrollers. It details the high-performance RISC CPU architecture, including 33 single-word instructions and a 12-bit wide instruction set. The microcontrollers feature a 4 MHz precision internal oscillator and support low-power modes with operating currents as low as 175 pA.

What's inside

• General Description
• Device Varieties
• Architectural Overview
• Memory Organization
• Timer0 Module
• Comparator Module
• Instruction Set Summary
• Development Support
• Electrical Characteristics
• Packaging Information

Specifications

Frequently asked questions

What is the operating speed of the PIC10F200/202/204/206?

The operating speed is 1 ps per instruction cycle using a 4 MHz internal clock.

Does the PIC10F200/202/204/206 support code protection?

Yes, the devices feature programmable code protection to prevent unauthorized access to software.

What is the temperature range for industrial applications?

The industrial temperature range is -40°C to +85°C.
