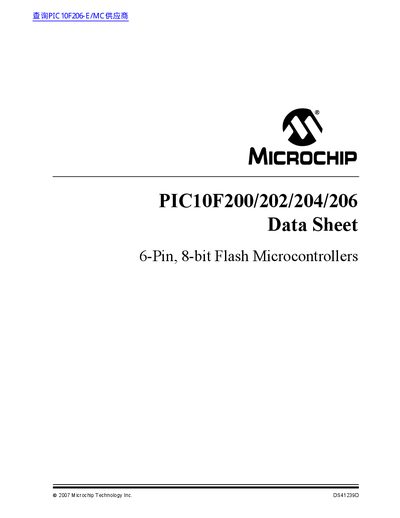

This document is a data sheet for PIC10F200/202/204/206 6-pin, 8-bit flash microcontrollers published by Microchip Technology Inc. The data sheet provides information about the device applications, including its features, conditions, performance, etc., and explains the risks associated with using it in life support and safety applications.
This document is a data sheet for the Microchip PIC10F200/202/204/206 family of 6-pin, 8-bit flash microcontrollers. The devices feature a high-performance RISC CPU with only 33 single-word instructions to learn and all single-cycle instructions except for program branches. Key special features include a 4 MHz precision internal oscillator calibrated to +1%, In-Circuit Serial Programming (ICSP) support, and a Watchdog Timer with a dedicated on-chip RC oscillator.
| Operating speed | 4 MHz internal clock |
|---|---|
| Operating voltage range | 2.0V to 5.5V |
| Operating temperature range (Industrial) | -40°C to +85°C |
| Operating temperature range (Extended) | -40°C to +125°C |
| Flash endurance | 100,000 |
| Code retention | > 40 year |
| Operating Current (typical) | <175 pA @ 2V, 4 MHz |
| Standby Current (typical) | 100 nA @ 2V |
| Program Memory (PIC10F200) | 256 words |
| Data Memory (PIC10F200) | 16 bytes |
| Timers (PIC10F200) | 4 |
| Comparators (PIC10F200) | 1 |
The wide operating voltage range is from 2.0V to 5.5V.
Yes, the devices feature programmable code protection.
The Flash technology provides 100,000 endurance cycles.
