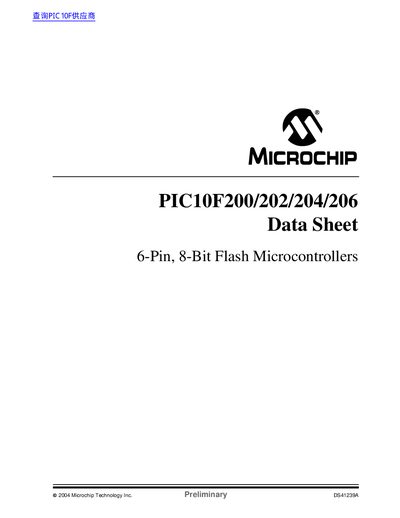

This document is an introduction to the PIC10F200/202/204/206 data sheet
This document provides technical specifications and architectural details for the Microchip PIC10F200/202/204/206 series of 6-pin, 8-bit Flash microcontrollers. The devices utilize a high-performance RISC CPU with only 33 single-word instructions to learn and operate at speeds up to 4 MHz using an internal oscillator calibrated to +1%.
Key features include In-Circuit Serial Programming (ICSP) support, a Watchdog Timer (WDT), Power-on Reset (POR), and various power-saving modes such as Sleep. The datasheet details the differences between device varieties, specifically noting that the PIC10F204/206 models include an additional Comparator module with internal absolute voltage reference compared to the PIC10F200/202.
| Operating Voltage Range | 2.0V to 5.5V |
|---|---|
| Operating Current (Max) | < 350uA @ 2V, 4 MHz |
| Standby Current (Typical) | 100 nA @ 2V |
| Flash Endurance | 100,000 cycles |
| Data Retention | > 40 years |
| Operating Temperature (Industrial) | -40°C to +85°C |
The devices operate at a speed of 1 instruction cycle per clock, with an internal oscillator capable of running up to 4 MHz.
The PIC10F202 has a program memory capacity of 512 words.
