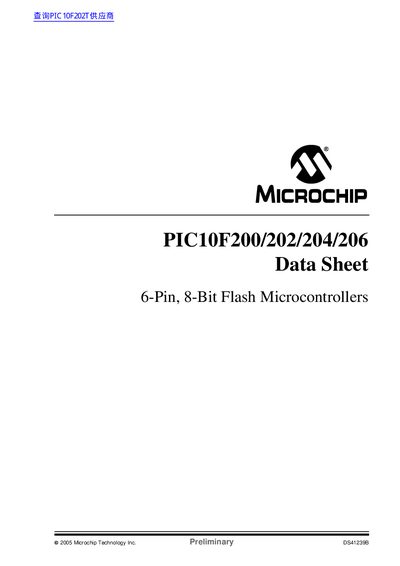

Microchip Technology Inc. published DS41239B PIC10F200/202/204/206 Data Sheet in 2005, which introduces the features and characteristics of 6-pin, 8-bit flash microcontrollers.
This document provides comprehensive technical specifications and architectural details for the Microchip PIC10F200/202/204/206 family of 6-pin, 8-bit Flash microcontrollers. The devices feature a high-performance RISC CPU with only 33 single-word instructions to learn, operating at speeds up to 4 MHz with a 1 µs instruction cycle.
Key features include a precision internal oscillator calibrated to +1%, In-Circuit Serial Programming (ICSP) support, and various power-saving modes. Peripheral capabilities vary by model, with the PIC10F204/206 including an additional comparator module alongside the standard 8-bit real-time clock/counter found in all variants.
| Operating Voltage Range | 2.0V to 5.5V |
|---|---|
| Operating Current | < 350µA @ 2V, 4 MHz |
| Standby Current | 100 nA typical @ 2V |
| Flash Endurance | 100,000 cycles |
| Data Retention | > 40 years |
The devices operate at a maximum speed of 4 MHz with an instruction cycle time of 1 µs.
The devices support a wide operating temperature range of -40°C to +85°C for industrial use.
