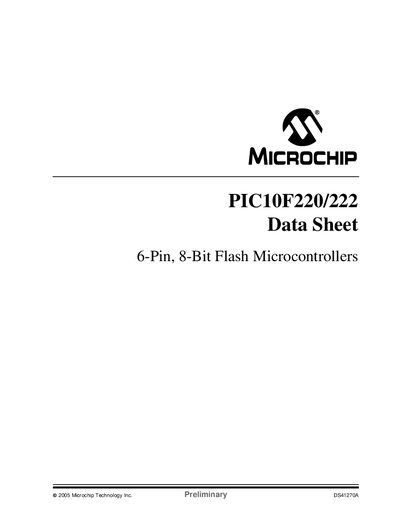

This is a data sheet for Microchip's 6-Pin, 8-Bit Flash Microcontrollers
This document is a preliminary data sheet for the PIC10F220/222 8-bit Flash microcontrollers from Microchip Technology. It provides detailed information regarding the device architecture, memory organization, I/O ports, timers, and other peripherals. The text outlines the high-performance RISC CPU features, including 33 single-word instructions and a 2-level deep hardware stack, as well as low-power features like Sleep mode and a precision internal oscillator.
| Operating Voltage | 2.0V to 5.5V |
|---|---|
| Operating Temperature (Industrial) | -40 °C to +85 °C |
| Operating Temperature (Extended) | -40 °C to +125 °C |
| Flash Endurance | 100,000 |
| Data Retention | > 40 year |
| Operating Current | < 350 μA @ 2V, 4 MHz |
| Standby Current | 100 nA @ 2V, typical |
| A/D Resolution | 8-bit |
| Instruction Cycle (4 MHz) | 1μs |
| Instruction Cycle (8 MHz) | 500 ns |
The maximum frequency of operation is 8 MHz.
The devices support 33 single-word instructions.
The Flash memory has a retention time of greater than 40 years.
