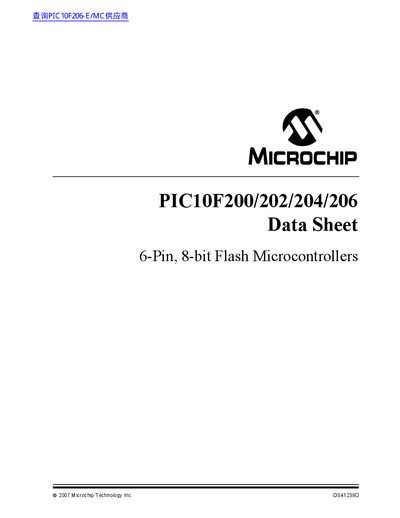

PIC10F200/202/204/206 are 6-Pin，8-bit Flash Microcontrollers produced by Microchip Technology Inc.
This document provides comprehensive technical specifications and architectural details for the PIC10F200/202/204/206 series of 6-pin, 8-bit Flash Microcontrollers. The devices feature a High-Performance RISC CPU with only 33 single-word instructions to learn, operating at speeds up to 4 MHz with a 1 µs instruction cycle time.
| Operating Speed | 4 MHz internal clock |
|---|---|
| Instruction Cycle Time | 1 µs |
| Operating Voltage Range | 2.0V to 5.5V |
| Data Memory (SRAM) (PIC10F206) | 24 bytes |
| Flash Endurance | 100,000 cycles |
The devices operate with a wide voltage range from 2.0V to 5.5V.
The microcontrollers have an operating speed of up to 4 MHz using an internal clock.
