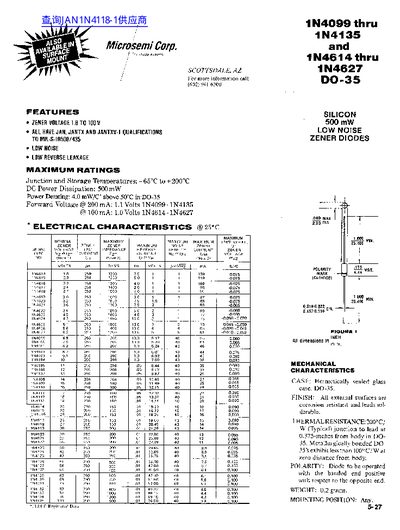

This document provides technical data for the 1N4099 through 1N4135 and 1N4614 through 1N4627 series of silicon zener diodes manufactured by Microsemi Corp. The devices are hermetically sealed in glass DO-35 cases and feature low noise, low reverse leakage, and availability in JAN, JANTX, and JANTXV-1 military qualifications.
| Maximum Power Dissipation | 500 mW |
|---|---|
| Operating Temperature Range | -65°C to +200°C |
| Forward Voltage @ 200 mA (1N4099-1N4133) | 1.1 Volts |
| Forward Voltage @ 100 mA (1N4614-1N4627) | 1.0 Volts |
The devices have JAN, JANTX and JANTXV-1 qualifications.
The DC Power Dissipation is 500 mW.
