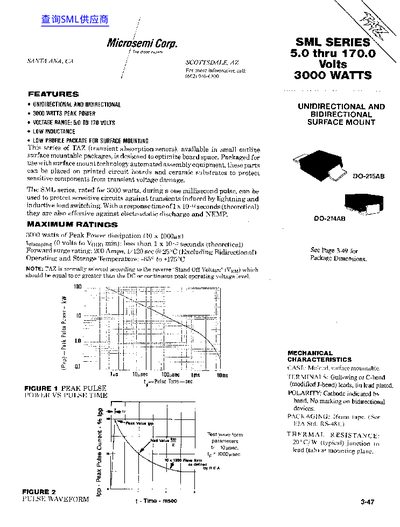

The Microsemi SML series consists of unidirectional and bidirectional transient absorption zeners designed for surface mount technology. These devices are rated for 3000 watts of peak power during a one millisecond pulse and are intended to protect sensitive circuits against transients induced by lightning and inductive load switching. They feature a response time of 1 x 10^-9 seconds and are available in small outline surface mountable packages such as DO-215AB and DO-214AB.
| Peak Power | 3000 Watts |
|---|---|
| Voltage Range | 5.0 to 170 Volts |
| Operating Temperature | -65° to +175°C |
| Forward Surge Rating | 200 Amps, 1/120 sec |
The SML series is rated for 3000 watts of peak power dissipation during a 10 x 1000us pulse.
The SML series is available in DO-215AB and DO-214AB surface mount packages.
Polarity is indicated by a band on the cathode; bidirectional devices have no marking.
