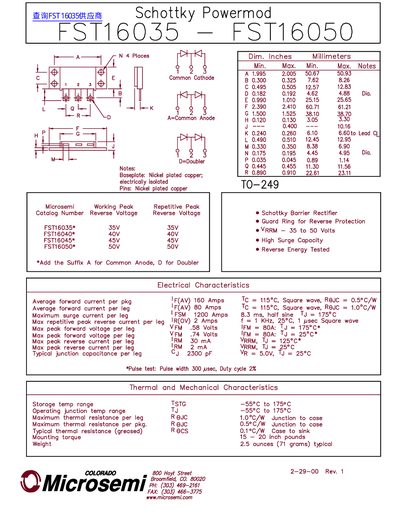

This document provides technical specifications for the Microsemi FST series of Schottky Powermod rectifiers. The product line includes models with reverse voltages ranging from 35V to 50V (FST16035 through FST16050). Key features include a high surge capacity, guard ring for reverse protection, and reverse energy testing.
The datasheet details electrical characteristics such as an average forward current of 160 Amps per package and 80 Amps per leg. It also lists thermal properties, including operating junction temperatures from -55°C to 175°C and maximum thermal resistance values for the device.
| Average forward current per pkg | 160 Amps |
|---|---|
| Average forward current per leg | 80 Amps |
| Maximum surge current per leg | 1200 Amps |
| Max peak forward voltage per leg | .58 Volts |
| Typical junction capacitance per leg | 2300 pF |
| Operating junction temp range | -55°C to 175°C |
The maximum average forward current per package is 160 Amps.
The typical weight is 2.5 ounces or 71 grams.
