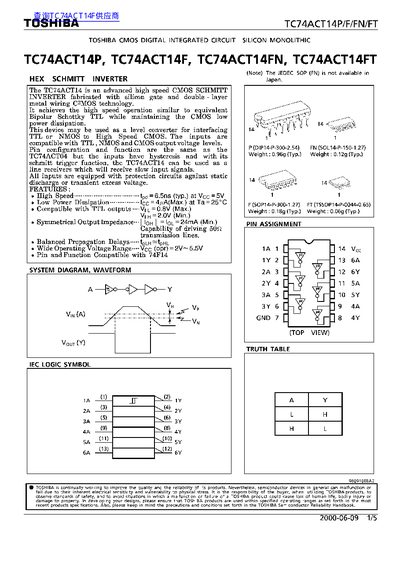

This document is a datasheet for the Toshiba TC74ACT14P, TC74ACT14F, TC74ACT14FN, and TC74ACT14FT series of Hex Schmitt Inverters. These devices are advanced high-speed CMOS inverters fabricated with silicon gate and double-layer metal wiring C2MOS technology. They achieve high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining low power dissipation.
| Propagation Delay Time (Typ.) | 6.5ns |
|---|---|
| Power Dissipation (Max.) | 4uA |
| Supply Voltage Range | 2V~5.5V |
| Operating Temperature | -40~85°C |
| Positive Threshold Voltage | 2.0V |
| Negative Threshold Voltage | 0.8V |
The typical propagation delay time is 6.5ns at Vcc = 5V.
The recommended operating supply voltage range is 4.5V to 5.5V.
No, the JEDEC SOP (FN) package is not available in Japan.
