The document describes a low-profile SMD type power inductor called SIWC1365. This inductor features low energy consumption, low resistance, magnetic shielding, and is suitable for high density mounting in power source circuits, DC-DC converters, DC-AC inverters, and other applications.

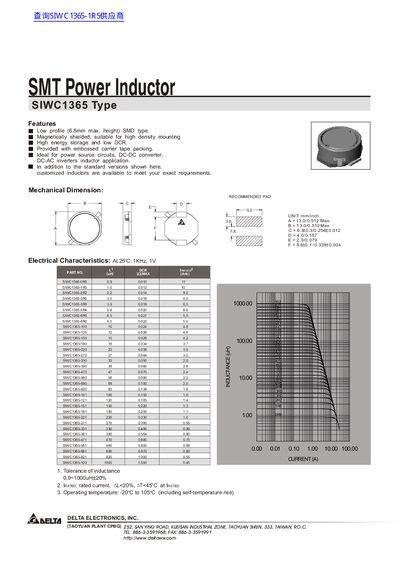

The Delta SIWC1365 is a low profile (6.8mm max. height) SMD type SMT power inductor. It is magnetically shielded, making it suitable for high density mounting applications. The component offers high energy storage and low DCR, and is provided with embossed carrier tape packing.
| Max Height | 6.8mm |
|---|---|
| Operating Temperature | -20°C to 105°C |
| Inductance Range | 0.9~1000UH |
| Temperature Rise | AT<45°C |
The maximum height is 6.8mm.
The operating temperature range is -20°C to 105°C.
