RM100DZ/CZ-24,-2H is a high voltage medium power general purpose insulated type diode module produced by Mitsubishi Electric with a rated average current of 100A and a reverse peak voltage of 1200/1600V.

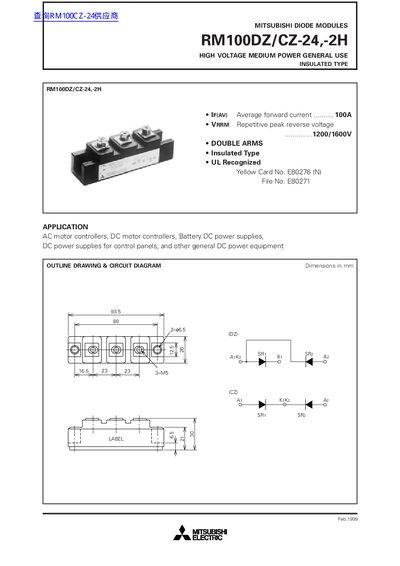

This document is a datasheet for the Mitsubishi Electric RM100DZ/CZ-24,-2H, a high voltage medium power general use insulated type diode module. It is designed for applications such as AC motor controllers, DC motor controllers, and battery DC power supplies. The module is UL Recognized with Yellow Card No. E80276 and File No. E80271.
| Repetitive peak reverse voltage | 1200/1600 V |
|---|---|
| RMS forward current | 157 A |
| Surge forward current | 2000 A |
| Maximum operating frequency | 1000 Hz |
| Junction temperature | -40~+150 °C |
| Isolation voltage | 2500 V |
| Weight | 160 g |
It is used for AC motor controllers, DC motor controllers, battery DC power supplies, and other general DC power equipment.
The typical weight of the module is 160 g.
The maximum operating frequency is 1000 Hz.
