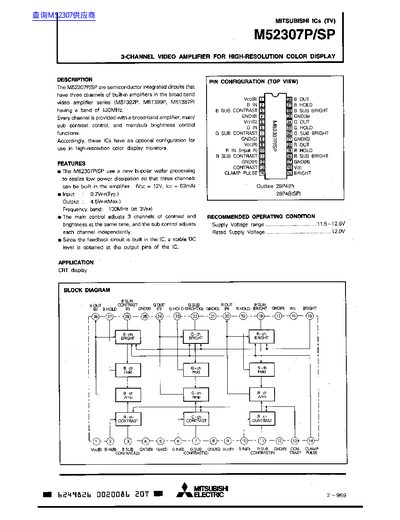

The Mitsubishi M52307P/SP is a semiconductor integrated circuit featuring three channels of built-in amplifiers in the broad-band video amplifier series. Each channel includes functions for main/sub contrast control and main/sub brightness control, making it suitable for use in high-resolution color display monitors.
Key features include low power dissipation (Icc = 68mA at Vec = 12V), a frequency band of up to 130MHz, and built-in feedback circuits for stable DC output levels. The device supports independent adjustment of sub controls while the main control adjusts all channels simultaneously.
| Supply Voltage (Rated) | 12.0 V |
|---|---|
| Operating Temperature Range | -20 to +85 °C |
| Frequency Band | 130MHz (at 3Vep) |
| Circuit Current (Typical) | 68 mA |
| Output Dynamic Range | 120 Vpp (Typ.) |
The recommended operating supply voltage is 12.0 V.
The absolute maximum supply voltage is 13.0 V, power dissipation is 2000 mW, and operating temperature ranges from -20 to +85 °C.
The M52307P/SP is designed for use in CRT displays.
