Mitsubishi Intelligent Power Mod- ules are isolated base modules de- signed for power switching applica- tions operating at frequencies to 20kHz. Built-in control circuits pro- vide optimum gate drive and pro- tection for the IGBT and free-wheel diode power devices.

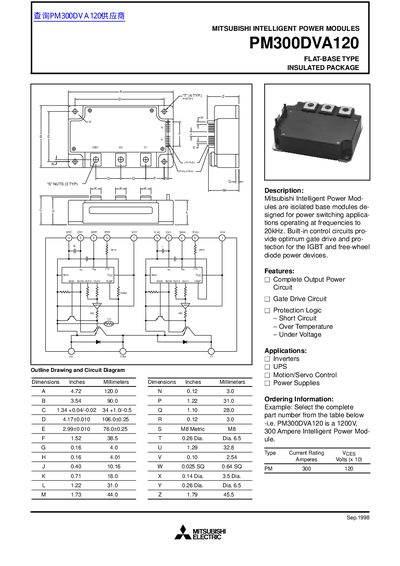

The document is a technical datasheet for the Mitsubishi Electric PM300DVA120, an isolated base intelligent power module (IPM). It features built-in control circuits for optimum gate drive and protection logic against short circuits, over-temperature, and under-voltage conditions. The device utilizes IGBTs and free-wheeling diodes suitable for frequencies up to 20kHz.
| Peak Collector Current (Iop) | 600 Amperes |
|---|---|
| Collector Dissipation (Pc) | 1380 Watts |
| Module Weight | 720 Grams |
| Isolation Voltage (Viso) | 2500 Vrms |
The module operates at frequencies up to 20kHz.
Over-temperature protection activates between 100°C and 120°C when the junction temperature is below 125°C.
The recommended mounting torque for both M6 mounting and main terminal screws is between 3.92 and 5.88 N-m.
