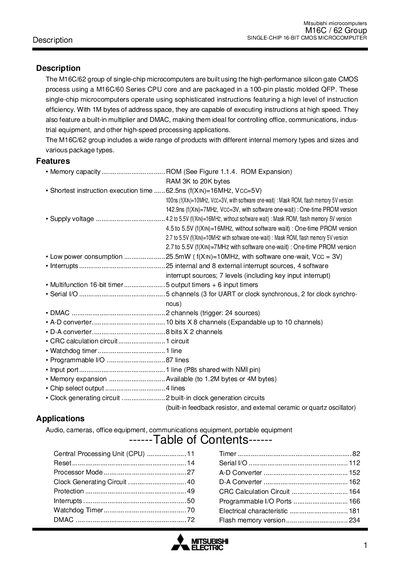

Mitsubishi microcomputers M16C / 62 Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description 1
This document describes the M16C/62 group of single-chip microcomputers built using a high-performance silicon gate CMOS process. These devices operate using sophisticated instructions with a high level of efficiency and feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, and industrial equipment.
| Instruction execution time | 62.5ns (f(XIN)=16MHz, Vcc=5V) |
|---|---|
| Supply voltage | 4.2 to 5.5V |
| Power consumption | 25.5mW |
| Number of basic instructions | 91 instructions |
| Package type | 100-pin plastic mold QFP |
| Interrupt sources | 25 internal and 8 external |
The shortest instruction execution time is 62.5ns when the input clock frequency is 16MHz and the supply voltage is 5V.
The supply voltage range is 2.7 to 5.5V when the input clock frequency is 10MHz with software wait.
The M16C/62 group has 25 internal and 8 external interrupt sources.
