The M627XXML/SL is a low voltage detector designed for detection of a supply voltage and generation of a system reset pulse for almost all logic circuits such as microprocessor. It also has extensive applications including battery checking, level detecting and waveform shaping circuits.

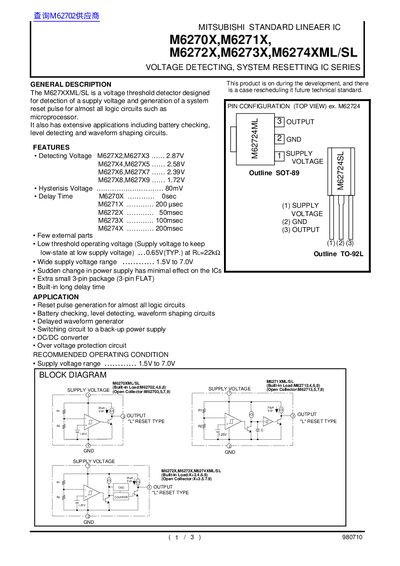

This document describes the M627XX series, a line of voltage threshold detectors designed to detect supply voltages and generate system reset pulses for logic circuits such as microprocessors. The series includes various models (M6270X through M6274XML/SL) offering different detecting voltage thresholds ranging from 1.72V to 2.87V.
| Supply Voltage Range | 1.5V to 7.0V |
|---|---|
| Operating Temperature | -30 to +85 °C |
| Detecting Voltage (M627X4, M627X5) | Typ. 2.58V |
| Delay Time (M6273X) | 100 msec |
The threshold operating voltage is a minimum of 0.65V typical at RL=22kΩ.
The device requires a supply voltage of at least 1.5V to operate.
The maximum operating temperature is +85 °C.
The maximum output sink current is 6 mA.
