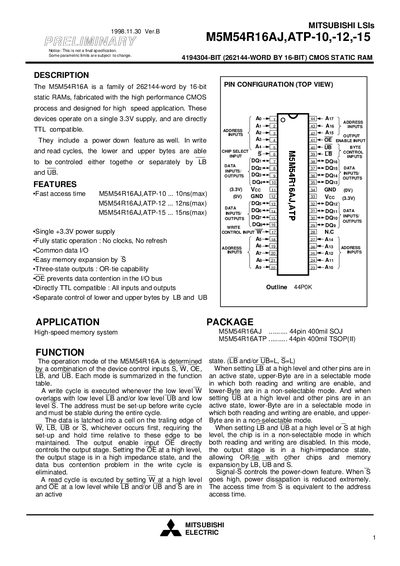

M5M54R16AJ,ATP-10,-12,-15 is a family of 262144-word by 16-bit static RAMs, fabricated with the high performance CMOS process and designed for high speed application. These devices operate on a single 3.3V supply, and are directly TTL compatible. They include a power down feature as well.
This document describes the M5M54R16A family of 4Mbit (262144-word by 16-bit) CMOS static RAMs. These devices are fabricated with a high-performance CMOS process and operate on a single +3.3V supply, making them directly TTL compatible. Key features include fully static operation without clocks or refresh, a power-down feature controlled by the S pin, and the ability to control lower and upper bytes separately using LB and UB inputs.
| Memory Capacity | 4Mbit (262144-word by 16-bit) |
|---|---|
| Supply Voltage | +3.3V |
| Operating Temperature | 0~70 °C |
| Access Time (ATP-10) | 10ns (max) |
| Access Time (ATP-12) | 12ns (max) |
| Access Time (ATP-15) | 15ns (max) |
| Package Type (AJ) | 44pin 400mil SOU |
| Package Type (ATP) | 44pin 400mil TSOP |
The device has a capacity of 4Mbit, configured as 262144 words by 16 bits.
Yes, all inputs and outputs are directly TTL compatible.
No, the device operates fully statically with no clocks or refresh required.
