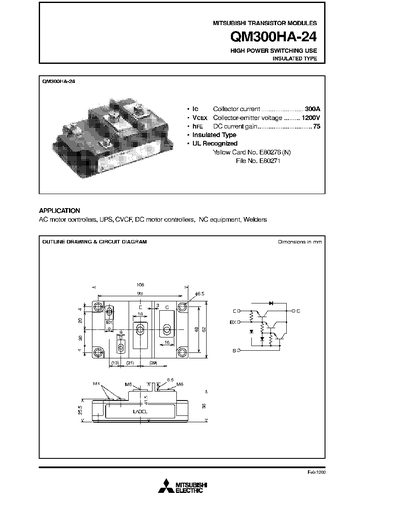

This document is a datasheet for the Mitsubishi Electric QM300HA-24, an insulated type transistor module intended for high power switching use. It lists applications such as AC motor controllers, UPS, CVCF, DC motor controllers, NG equipment, and welders.
| Collector current | 300 A |
|---|---|
| Collector dissipation | 1980 W |
| Base current | 16 A |
| Junction temperature | -410~+150 |
| Isolation voltage | 2600 v |
| Weight | 460 g |
The absolute maximum collector current rating is 300 A.
The specified junction temperature range is from -410 to +150 degrees Celsius.
