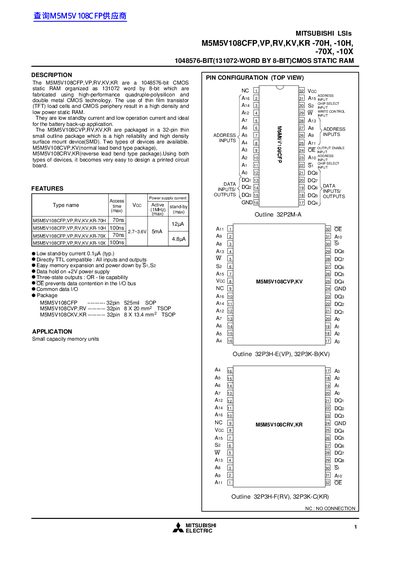

MITSUBISHI LSIs M5M5V108CFP,VP,RV,KV,KR is a 1048576-bit CMOS static RAM fabricated using high-performance quadruple-polysilicon and double metal CMOS technology. They have high density and low power characteristics, making them ideal for battery backup applications.
This document describes the M5MS5V108CFP, VP, RV, KV, and KR series of 1048576-bit (131072-word by 8-bit) CMOS static RAMs. These devices are fabricated using high-performance quadruple-polysilicon and double metal CMOS technology with thin film transistor load cells to achieve high density and low power consumption.
| Capacity | 1048576-bit (131072-word by 8-bit) |
|---|---|
| Technology | Quadruple-polysilicon and double metal CMOS |
| Operating Temperature (H) | 0~70 °C |
| Supply Voltage Range | 2.7~3.6V |
| Access Time (-10H/-10X) | 100 ns |
| Access Time (-70H/-70X) | 70 ns |
| Package Types | 32-pin TSOP (Thin Small Outline Package) |
The device has a capacity of 1,048,576 bits.
The maximum power dissipation is 700 mW.
The operating temperature range is 0 to 70 °C.
