TAR8H02K is a dual output low dropout linear regulator manufactured by Toshiba. It has overtemperature protection and overcurrent protection functions. Its operating voltage range is 12V, the maximum output current is 150mA, and the working temperature range is -40 to 85 degrees.

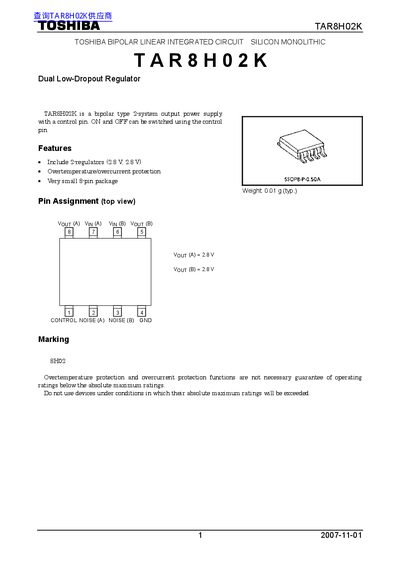

The Toshiba TAR8H02K is a bipolar type 2-system output power supply featuring two 2.8V regulators. It includes overtemperature and overcurrent protection functions and is available in a very small 8-pin SSOPB-P-0.50A package. The device allows ON and OFF switching via a dedicated control pin.
| Output Current (A-channel) | 100 mA |
|---|---|
| Output Current (B-channel) | 150 mA |
| Power Dissipation | 200 mW |
| Operating Temperature Range | -40 to 85 °C |
| Package Type | SSOPB-P-0.50A |
The ON and OFF states can be switched using the control pin.
The device includes overtemperature and overcurrent protection.
