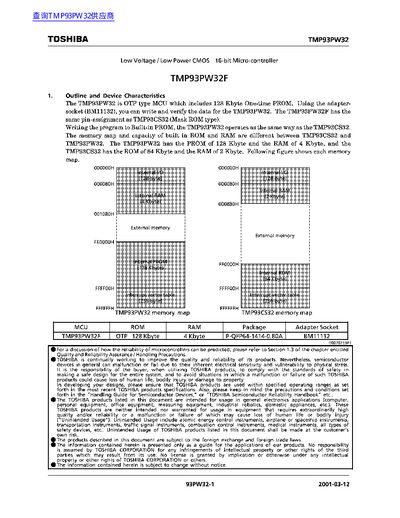

Toshiba TMP93PW32F Low Voltage CMOS Microcontroller Datasheet

About this manual

The document details the specifications of the TMP93PW32F, an OTP (One-Time Programmable) type MCU that includes 128 Kbytes of One-time PROM and 4 Kbytes of RAM. It features a pin assignment compatible with the TMP93CS32 mask ROM type device.

What's inside

• Outline and Device Characteristics
• Pin Assignment and Functions
• Block Diagram
• MCU Mode Pin Functions
• PROM Mode Pin Functions

Frequently asked questions

What is the memory capacity of the TMP93PW32F?

The device contains 128 Kbyte of PROM and 4 Kbyte of RAM.

What adapter socket is required to program this microcontroller?

You must use the BM11132 adapter socket to write and verify data.

What is the package type for the TMP93PW32F?

The device comes in a P-QFP64 package.
