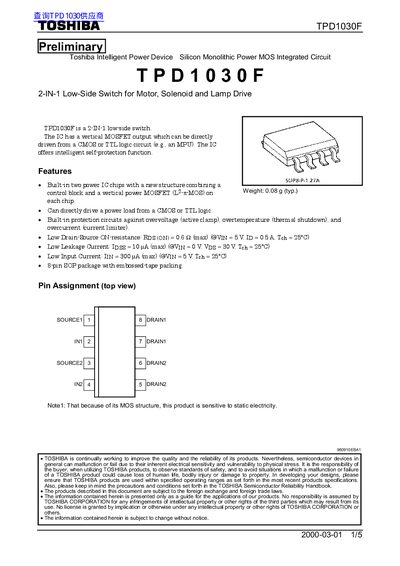

TPD1030F is a 2-IN-1 low-side switch that can be directly driven from a CMOS or TTL logic circuit. The IC offers intelligent self-protection function and is built-in with two power IC chips with a new structure combining a control block and a vertical power MOSFET (L2-π-MOS) on each chip. The IC also has protection circuits against overvoltage, overtemperature, and overcurrent.
The Toshiba TPD1030F is a 2-IN-1 low-side switch integrated circuit featuring a vertical MOSFET output capable of being directly driven by CMOS or TTL logic circuits. It includes intelligent self-protection functions against overvoltage, overtemperature, and overcurrent conditions.
| Drain-source voltage | 40 V |
|---|---|
| Operating temperature | -40 to 110 °C |
| Channel temperature | 150 °C |
| Drain-source ON-resistance | 0.6 Ω |
| Leakage current | 10 pA |
| Package type | 8-pin SOP |
The IC can be directly driven from a CMOS or TTL logic circuit.
It includes protection against overvoltage, overtemperature, and overcurrent.
The maximum operating temperature is 110 °C.
