TD62304,305P/AP/F/AF is a 7-channel low-level open-drain driver produced by Toshiba Corporation, which is suitable for 5V TTL, 5V CMOS and other logic ICs.

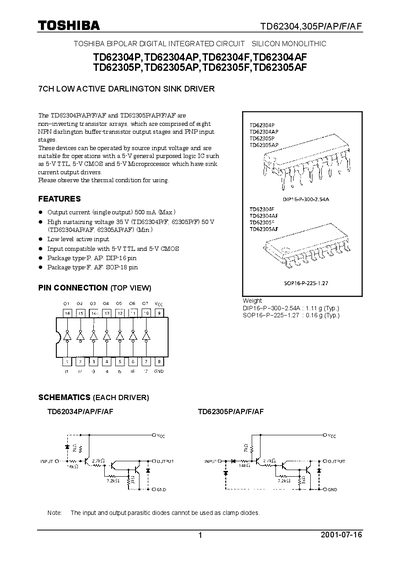

The document details the specifications for the TD62304P/AP/F/AF and TD62305P/AP/F/AF integrated circuits. These devices are non-inverting transistor arrays comprised of eight NPN Darlington buffer-transistor output stages and PNP input stages, designed to operate with source input voltage.
| Output current (single output) | 500 mA (Max.) |
|---|---|
| Input compatibility | 5-V TTL and 5-V CMOS |
| Package types | DIP-16 pin or SOP-18 pin |
The devices can be operated with a supply voltage between -0.5 V and 7.0 V.
The maximum output current per channel is 500 mA.
A Type-P package has a maximum power dissipation of 1.47 W.
