This document is about the specifications of 1.6/5.6 RF coaxial connectors, including electrical characteristics, mechanical characteristics, etc.

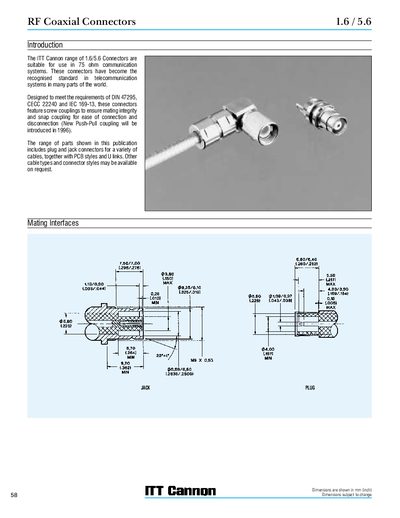

This document details the ITT Cannon range of 1.6/5.6 Connectors, which are suitable for use in 75 ohm communication systems and have become a recognized standard in telecommunication systems worldwide. The publication covers various connector styles including plug and jack connectors for different cables, as well as PCB styles and U links.
| Impedance | 75 Ohm nominal |
|---|---|
| Frequency Range | 0-1 GHz |
| Voltage Rating | 330 Vrms At Sea Level |
| Insulation Resistance | 10 GOhm minimum |
| Contact Resistance Inner | 4 mOhm maximum |
| Temperature Rating | -40° C to 85° C |
| Connector Durability | 500 matings minimum |
They are designed to meet the requirements of DIN 47295, CECC 22240 and IEC 169-13.
The bodies and nuts are made of brass.
